Plant Historian 5 HMI

Plant Historian 5 HMI - Visualization

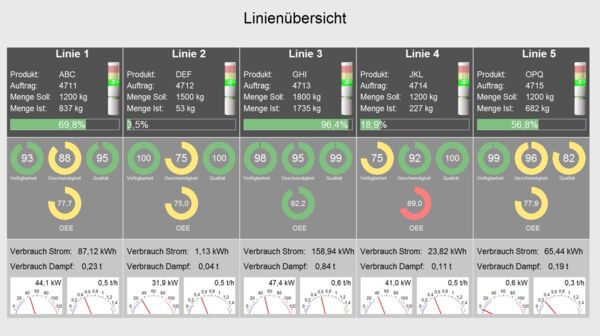

Visualization of Production Halls, Process Data and Equipment

Plant Historian 5 HMI - Visualization - offers connection possibilities to any PLS/PLC/ERP system. There are visualization options for alarms & events, process and machine data (e.g. traffic light function for quality, performance, consumption etc.) and OEE-key figures on one single surface. Optimization approaches are identified at an early stage and can be realized sustainably.

Plant Historian 5 HMI is a company-wide solution with high saving potential with regard to hardware, software licences and maintenance and support costs.

flexible - scalable - centrally connected

Benefits

• Flexible  plant monitoring (KPI, OEE reporting etc.)

• Abstract presentation of the plant status and information concentration
  (e.g. traffic light function for machine quality, performance or consumption)
• Networked presentation  of decentralized machines and production units
• Transparency due to information concentration (Big Data)

Core Features

• Flexible dashboarding per drag & drop
• Personalized layouts

• Multi screen splitter (up to 4 different views)
• Visualization of alarms & events, process or machine data, OEE keyfigures etc. on one surface
• Central collection of technical operating data

Technologies

• Web functionality
• Connection via standardized interfaces and protocols:
• I/O link
• TwinCat I/O
• Siemens Sinumerik
• M-Bus to TCP/IP
• Modbus  connection (e.g. via RS485)
• Modbus to TCP/IP
• 4-20 mA or 0-20 V to TCP/IP (OPC, Modbus etc.)
• Standardized OPC connection to the PCS/SPS world
• SAP Netweaver SOAP
• SAP PI
